Vertical Security Stair Core CAD Detail with Plan Elevation Layout

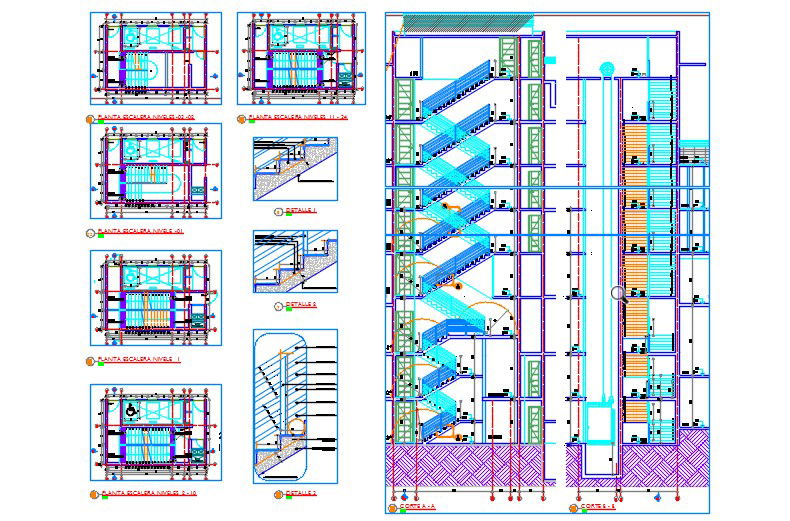

 This AutoCAD drawing presents the detailed layout of a vertical security zone within a multi level building structure. The drawing illustrates plan views and sectional elevations showing the arrangement of staircases, circulation paths, and structural components used to create a protected vertical movement zone. The layout demonstrates how stair flights, landings, and guardrail systems are organized to provide safe vertical circulation between floors. Dimensional measurements and structural alignment allow architects and civil engineers to understand the positioning of stair elements and the structural framework surrounding the security core. Clear annotations explain the stair configuration, landing connections, and vertical structural alignment used within the security zone.
