Brick Sardinel Lintel Construction Detail Masonry Wall CAD Drawing

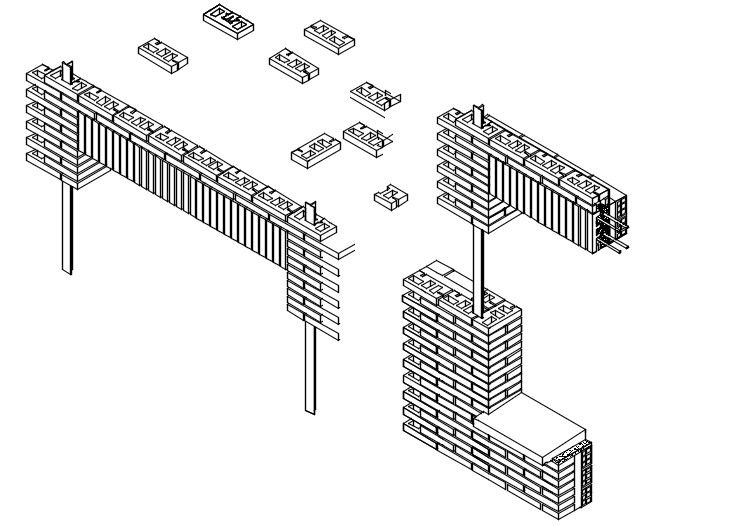

This AutoCAD DWG drawing presents a brick sardinel lintel construction detail used in masonry wall openings. The drawing illustrates the structural arrangement of bricks placed vertically in a sardinel pattern to form a lintel above a wall opening. The detail shows the brick bonding method used to create a strong horizontal lintel that supports the masonry wall above doors or window openings. The drawing also includes the placement of vertical support elements and structural reinforcement used to stabilize the lintel assembly. The arrangement of bricks clearly demonstrates how the sardinel pattern distributes loads from the upper masonry layers to the supporting wall structure.
