Acoustic Floor Insulation Detail Impact Noise Isolation Design

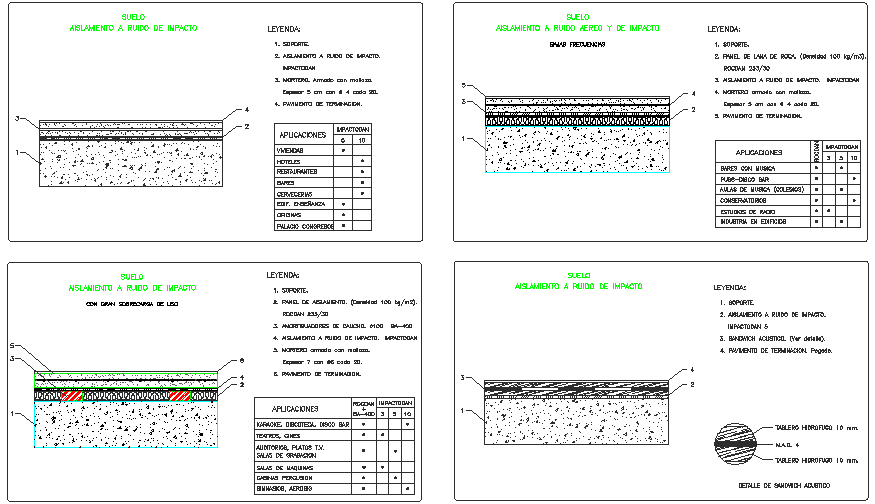

The Acoustic Floor Insulation Detail drawing presents a technical construction layout illustrating different floor assemblies designed for impact noise isolation and acoustic performance. The drawing includes sectional views of floor layers that reduce sound transmission between building levels. Each section demonstrates the arrangement of structural slabs, acoustic insulation materials, and finishing floor layers used to control impact noise generated by footsteps or mechanical vibrations. Materials such as resilient insulation boards, sound-absorbing membranes, and separation layers are integrated within the floor system to improve acoustic comfort in residential and commercial buildings.
