Industrial Power House Equipment Layout And Facility Building Plan

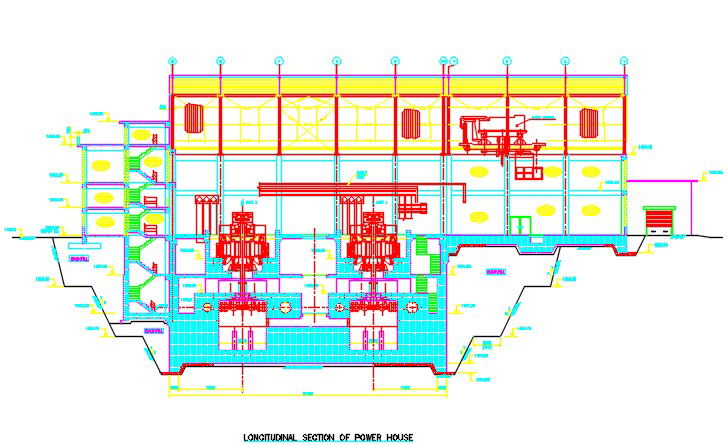

Industrial power house equipment layout and building plan drawing showing the internal arrangement of mechanical and electrical equipment within a power generation facility structure. The drawing illustrates the layout of heavy equipment areas, service corridors, operational zones, and structural wall alignment used to organize machinery installation inside the power house building. Equipment positioning, structural grid arrangement, and circulation paths are clearly represented to help engineers and designers understand the spatial planning of the power house facility and the relationship between equipment areas and building structure.
