Tilted Wall Structural Detail With Section Plan And Isometric View

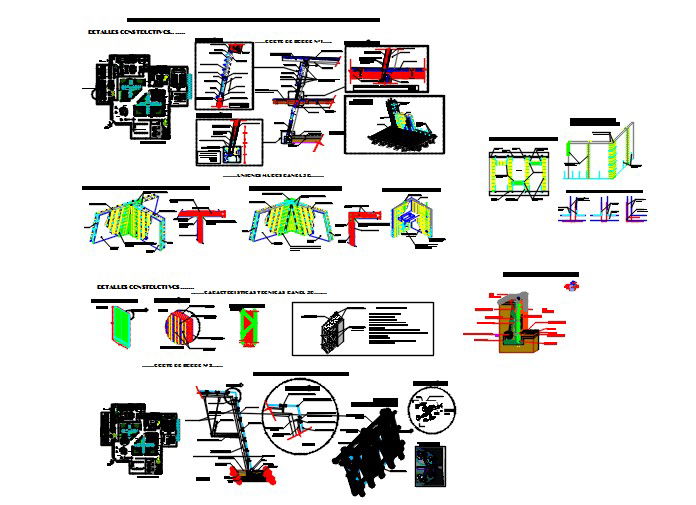

This AutoCAD drawing presents a detailed tilted wall structural system used in modern building construction, where wall panels are cast horizontally and then lifted into a vertical position using cranes. The drawing includes multiple construction details such as wall section views, wall plan layout, and an isometric representation of the tilted wall panel. Structural components of the tilted wall are clearly illustrated, including reinforcement arrangement, wall thickness, lifting points, and connection elements used during panel placement. The drawings demonstrate how the wall panel is lifted from the horizontal casting position and gradually rotated into its final vertical structural position. Detailed section drawings show the internal reinforcement placement, panel thickness, and connection support required to stabilize the wall structure during installation.
