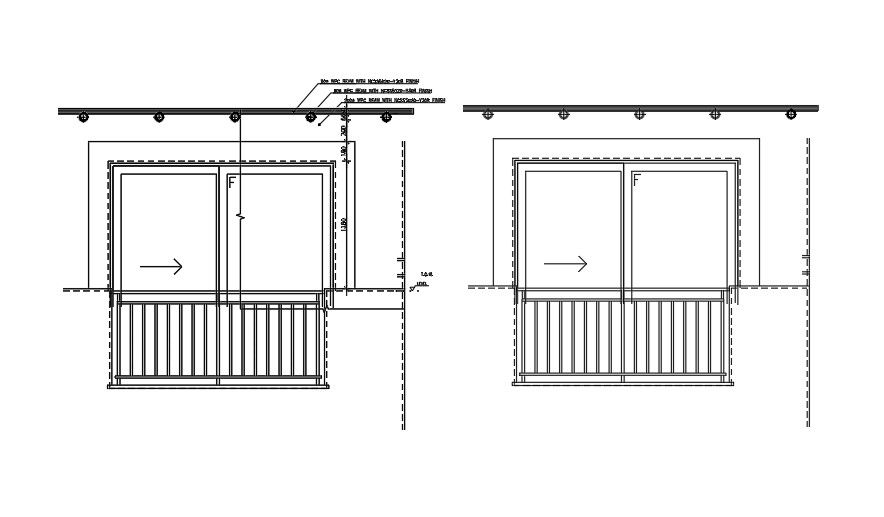

Elevation and section of balcony.

This Architectural Building is Elevation and section of a balcony. In this drawing the elevation shows the frame of the shutter door/window, the balcony and its lighting fixtures. In this drawing the detailing of lights are shown with dimension. If you plan to illuminate an entire wall or accent particular architectural features or pieces of art, the rule of thumb is to place your recessed light fixtures between 1.5 feet and 3 feet from the wall. If your fixtures are fixed, they should be placed a bit closer to the wall. For more details and knowledge download the drawing file.
