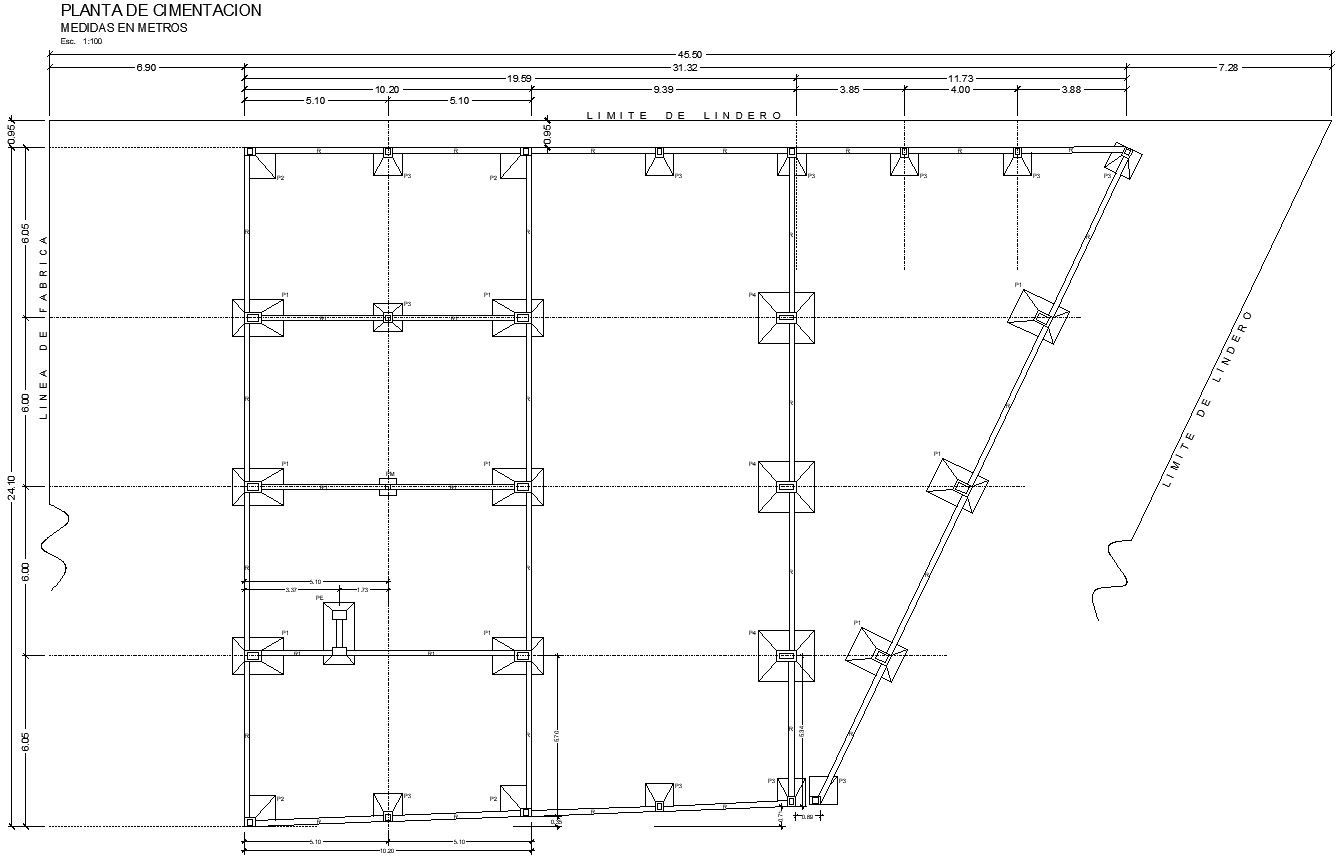

Drawing of column and beam structure with detailing


This architectural drawing is Drawing of column and beam structure with detailing. The beams and columns work as a system to transfer loads from the slabs to the beams and then to the columns. This acts as a system to resist horizontal loads from the forces that can act on the structure.  Beams shall normally be provided under the walls or below a heavy concentrated load to avoid these loads directly coming on slabs. 2. Avoid larger spacing of beams from deflection and cracking criteria. For more details and information download the drawing file.


File Type: DWG File ID: 253856
