Accessible Door Design With Wheelchair Clearance And Opening Layout

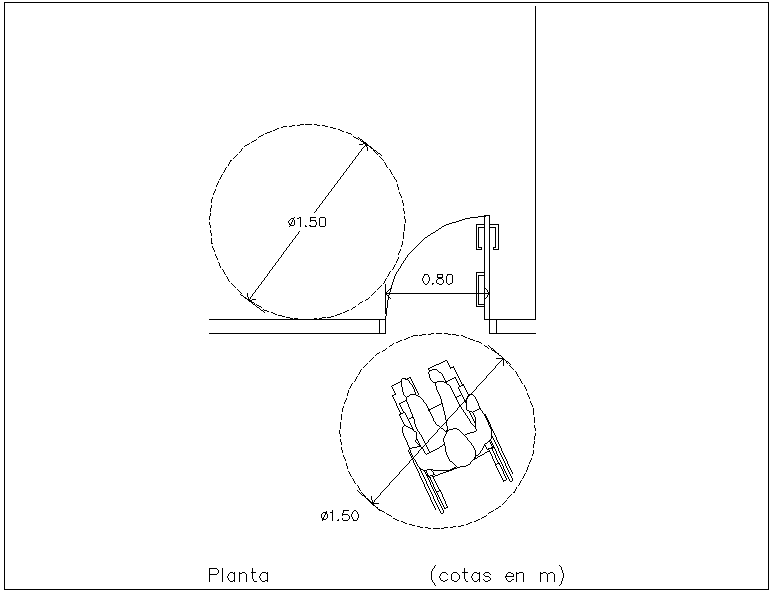

This AutoCAD drawing shows a detailed design of an accessible door specifically designed for wheelchair users. The plan highlights the door leaf, swing direction, and clearance required for a wheelchair to pass comfortably. The diagram includes measurements for door width, handle placement, and threshold height to ensure compliance with accessibility standards. Circular clearance zones indicate the turning radius for a wheelchair, demonstrating proper spacing for safe entry and exit. The door structure is dimensioned for clear visibility of the frame and positioning in relation to the surrounding walls, ensuring correct installation and functional usability.
