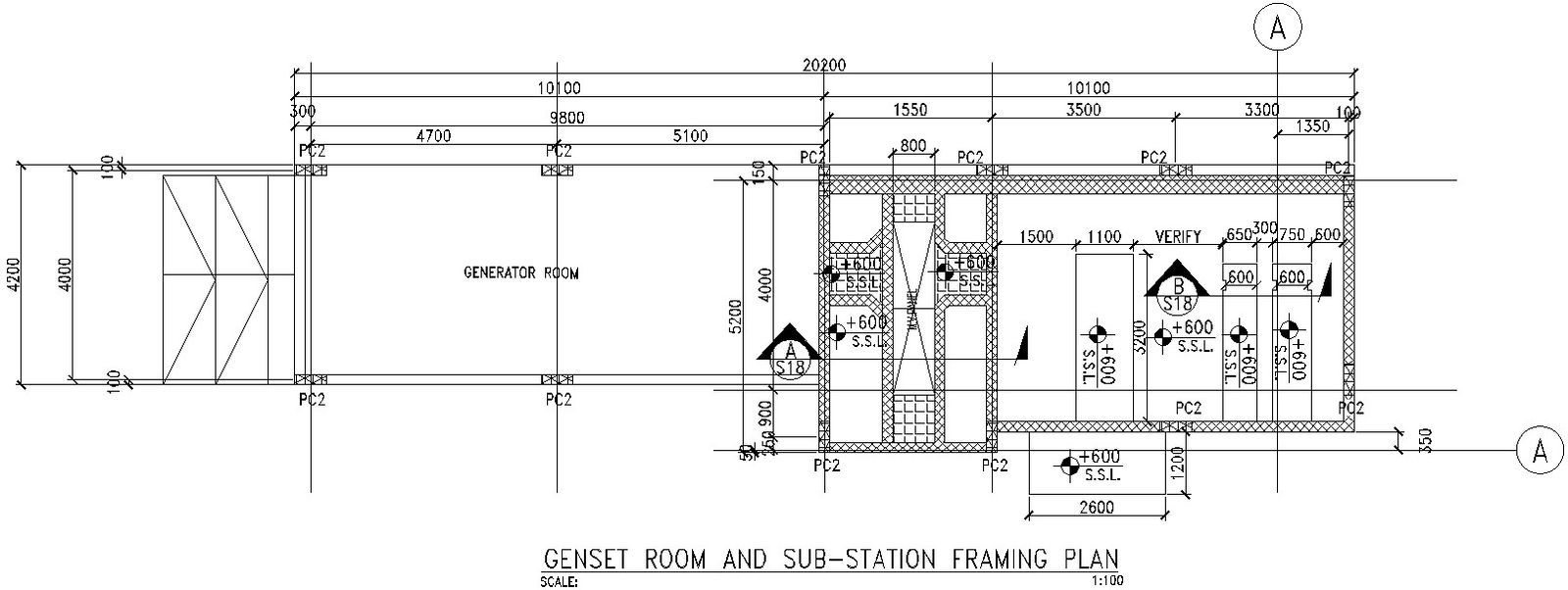

This Architectural Drawing is AutoCAD 2d drawing of Genset room and sub station framing plan in AutoCAD, Dwg files. A genset is usually housed in a sound attenuated enclosure to reduce noise to the surrounding areas, and is typically made of steel or stainless steel, or aluminum. This cabin must be able to withstand corrosion and effectively manage the engine cooling process. The genset and its equipment (control panel, fuel tank, exhaust silencer, etc.) are integral together and this integrity should be considered during the design phase. The genset room floor should be liquid-tight to prevent leakage of oil, fuel, or cooling liquid into nearby soil. For more details and information download the drawing file.
