Structure Detail with Column and Wooden Frame View AutoCAD Drawing

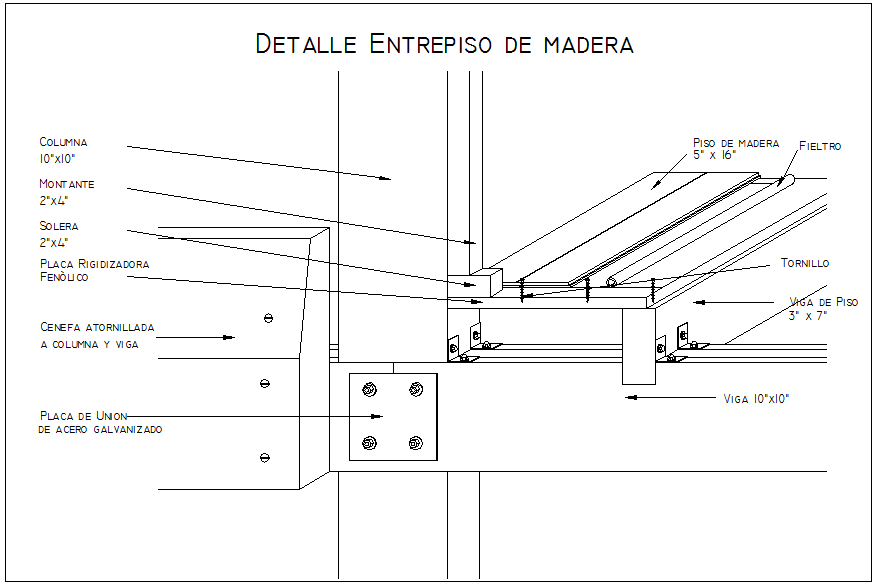

This AutoCAD DWG file provides a detailed structure view including wooden floor beams, 10"x10" columns, 3"x7" floor joists, screws, galvanized steel joint plates, and rigidizer panels. The drawing illustrates the full assembly of wooden flooring with felt lining, floor panels of 5"x16", and detailed connections between columns and beams. Ideal for architects, civil engineers, interior designers, and construction professionals seeking precise structural details. Perfect for project planning, CAD documentation, and accurate 3D modelling in Revit, 3ds Max, or SketchUp.
