3D Wood Structure Design with Beam Connection and Steel Plate CAD File

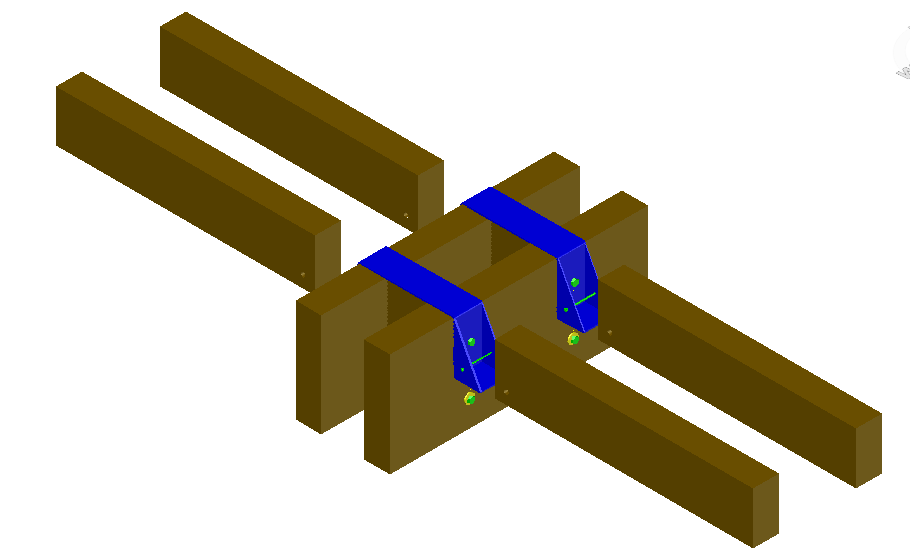

This CAD file presents a detailed 3D wood structure design showcasing beam connections with steel plate fasteners and bolted joints. The drawing illustrates the intersection of timber beams secured using metal brackets and bolts, ensuring structural stability and load distribution. It highlights precise alignment, connection detailing, and fastening techniques used in timber construction systems. The design is suitable for structural frameworks, roofing systems, and wooden construction projects requiring strong and reliable joint connections.
