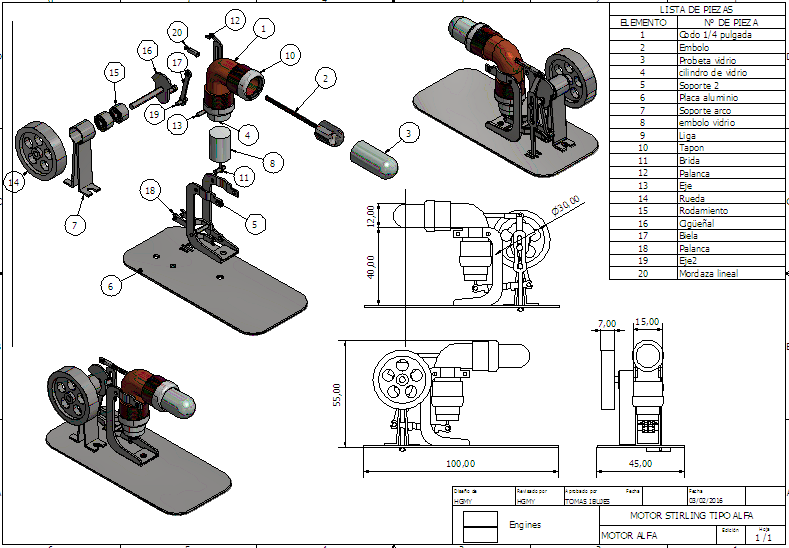

Motor elevation and 3d view dwg file with 3d view of motor and wheel,plunger,body, connecting rod,glass test tube,bearing,plug view,support arc view with joining detail and elevation with necessary dimension.
