Multi Storey Hotel Building Architectural Plan and Elevation

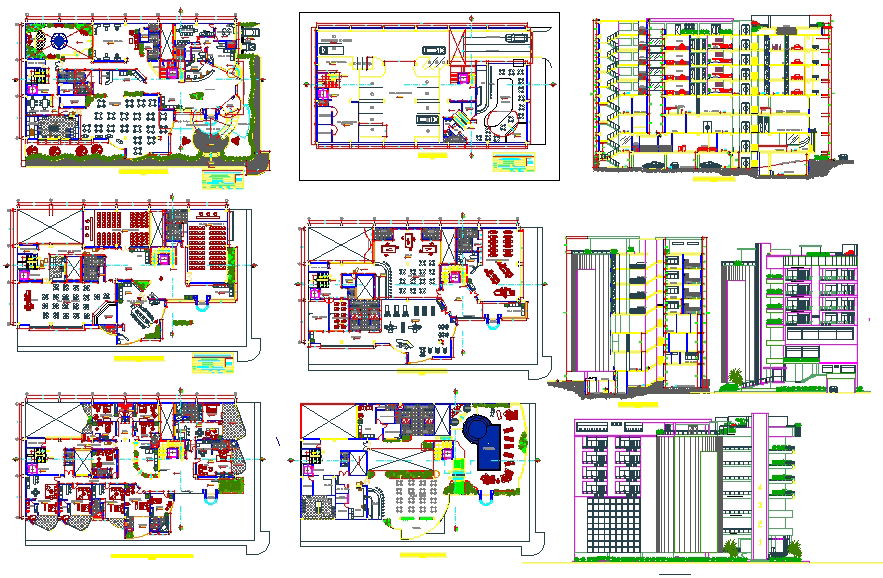

This multi-storey hotel building plan presents a complete AutoCAD DWG drawing set including ground floor plan, typical floor layouts, service areas, and vertical circulation cores. The ground floor plan illustrates reception lobby, waiting lounge, dining area, kitchen section, and utility rooms arranged with clear circulation paths. Upper floor plans show repeated guest room modules aligned along corridors with a staircase and lift core positioned centrally for efficient movement. Structural grid lines, wall thickness references, and room zoning are clearly marked to support coordinated architectural planning of the multi-storey hotel building plan.
