Multi Speciality Hospital Plan with 17914 Sq Ft Carpet Area.

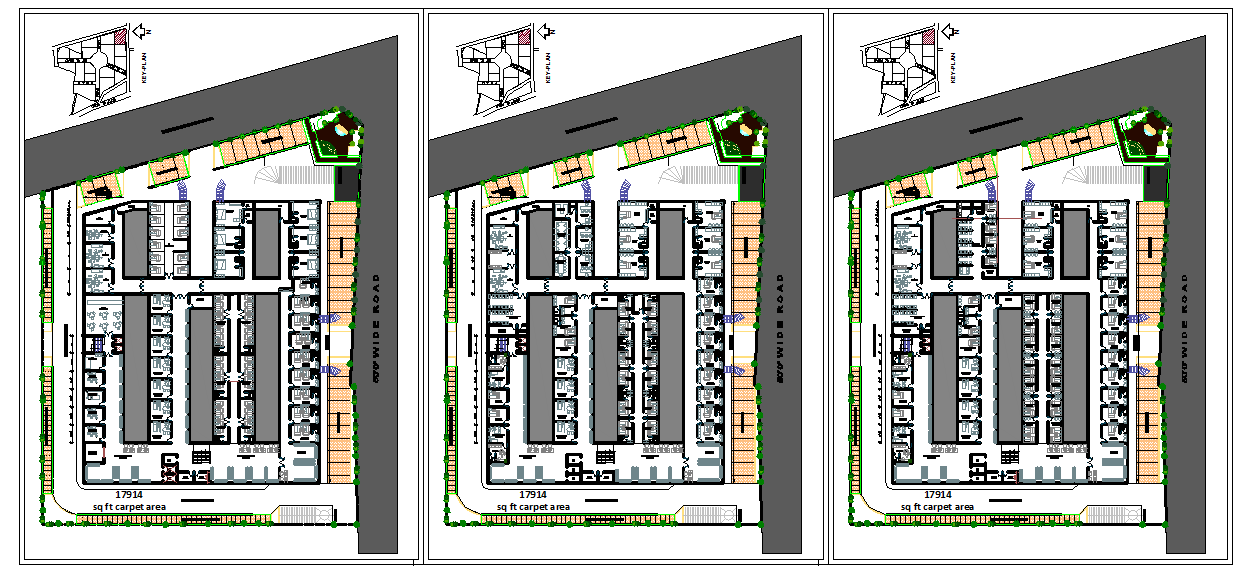

This multi-speciality hospital plan presents a detailed hospital floor plan arranged on a site layout with road access on two sides and landscaped boundary edges. The drawing clearly marks 17914 sq ft carpet area and shows organized zoning of departments, consultation rooms, patient wards, diagnostic rooms, and service cores. The hospital layout design includes internal circulation corridors, staircase blocks, lift positions, and reception areas aligned centrally for efficient patient flow. Parking bays are arranged along the edge with entry and exit points from the main road. Landscape strips, paving blocks, and pedestrian pathways are structured around the building perimeter.
