Foundation Design Drawing With 1200x1200 mm RCC Footing Detail

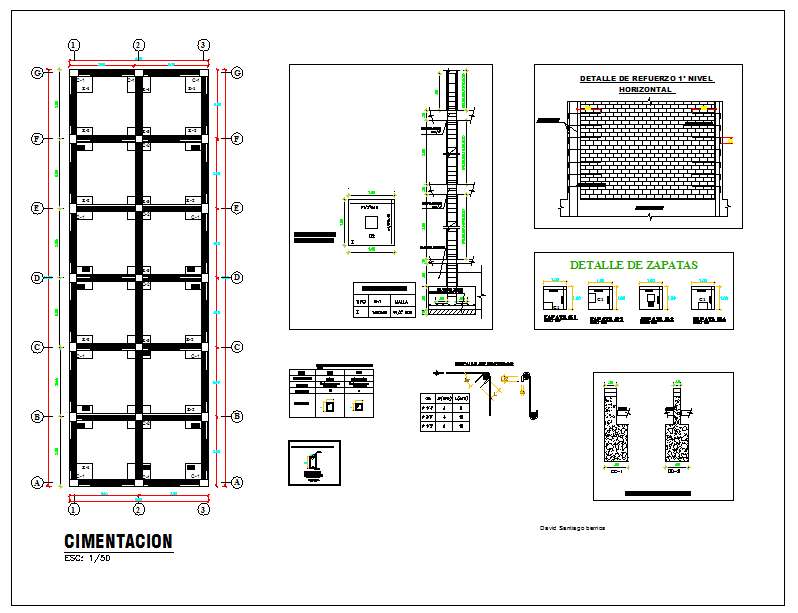

Download a professional foundation design drawing created in AutoCAD format for structural and construction planning. This drawing clearly illustrates an isolated footing foundation system with standard dimensions such as a 1200x1200 mm footing base, 300 mm footing thickness, and centrally aligned RCC column connection. The drawing includes section views, depth levels, reinforcement layout indication, and foundation positioning below ground level, making it suitable for residential and commercial building design documentation. It helps users understand load transfer, footing size coordination, and basic structural detailing required for execution drawings.
