Industrial Building Section Layout with Overhead Crane 50 kN Capacity

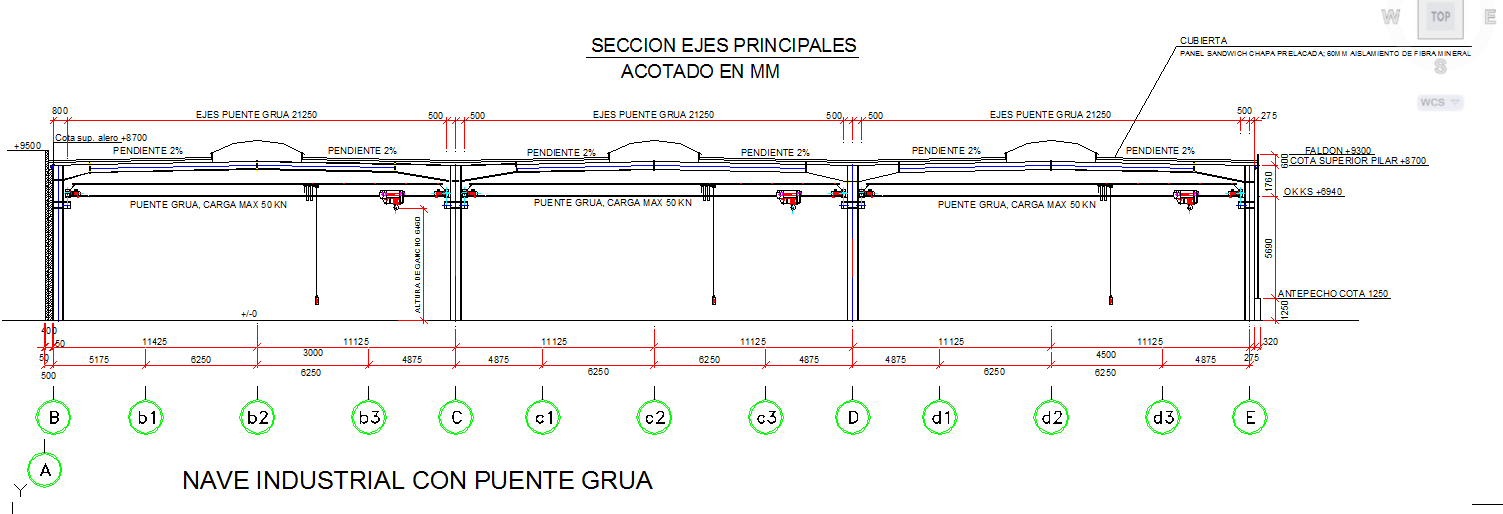

This industrial building section drawing presents a detailed structural layout of an industrial building section with an overhead crane with a 50 kN capacity. The section view is fully dimensioned in mm and includes structural grid references, column spacing of 11225 mm bays, intermediate dimensions such as 6250 mm and 4875 mm, and total crane bridge axes of 21250 mm. Roof slope is clearly marked at 2 percent, with elevation levels such as plus 9500 mm and crane runway beam alignment indicated. The drawing also shows deck alignment, pillar heights, parapet level at 1250 mm, and structural span coordination across axes B, C, D, and E.
