Roof Section DWG with Waterproofing, Insulation and Structural Layers

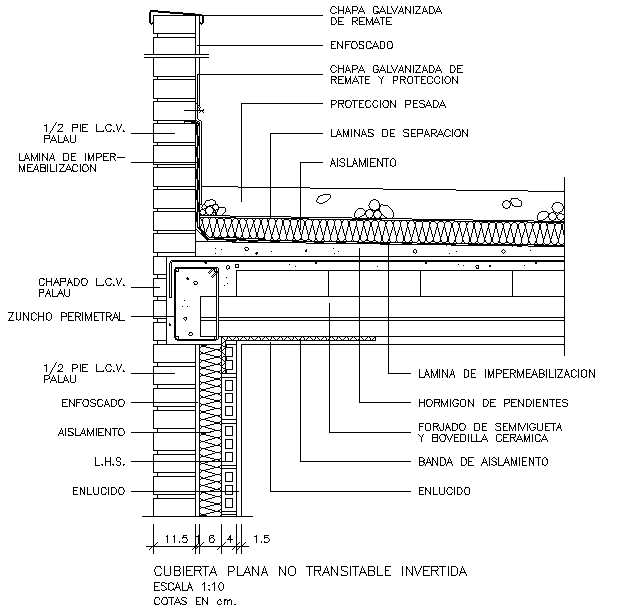

This detailed Roof Section DWG features a non-transitable inverted roof with complete construction layers. The drawing includes reinforced concrete edges, perimeter beams, ceramic blocks, insulation layers, waterproof membranes, heavy protection sheets, and galvanized finishing plates. Designed for architects, structural engineers, and builders, this DWG provides precise measurements, sectional annotations, and material specifications for accurate implementation. Each component highlights insulation placement, slope concrete, separation sheets, and finishing layers, ensuring durability, water resistance, and structural integrity. Compatible with AutoCAD, Revit, and 3D Max, this CAD file allows professionals to plan, document, and execute roof construction efficiently.
