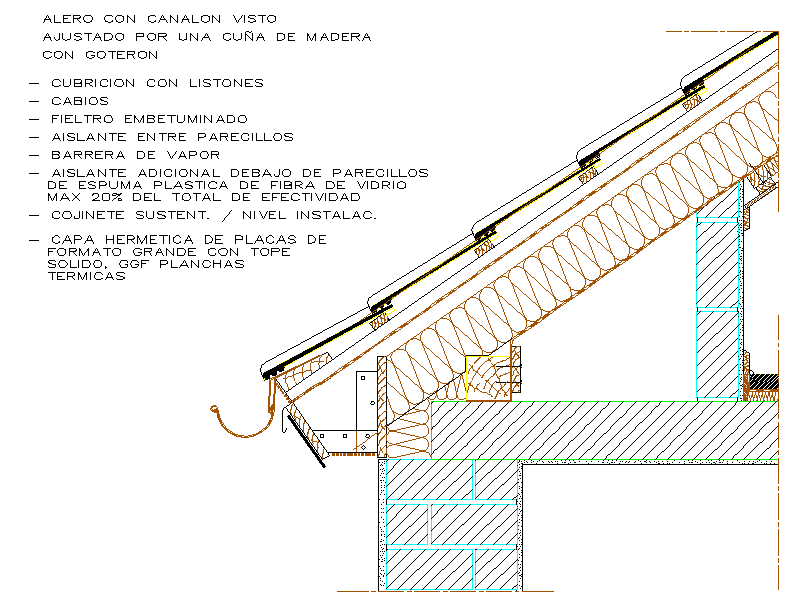

Tile Structure Roof Detail DWG with Insulation and Finish Layers

This Tile Structure Roof DWG provides a detailed architectural and structural design for a residential or commercial roof, illustrating the complete assembly of roof layers. The drawing highlights the visible eave with gutter, structural battens, roof joists, and insulation layers. A waterproofing layer and vapor barrier are included to ensure optimal thermal performance and durability. Additional insulation under the joists, made of fiberglass plastic foam, contributes to up to 20% of total effectiveness, making this roof suitable for regions requiring efficient energy management.
