Residential Plumbing Layout with Pipe Valve and Tank Details AutoCAD

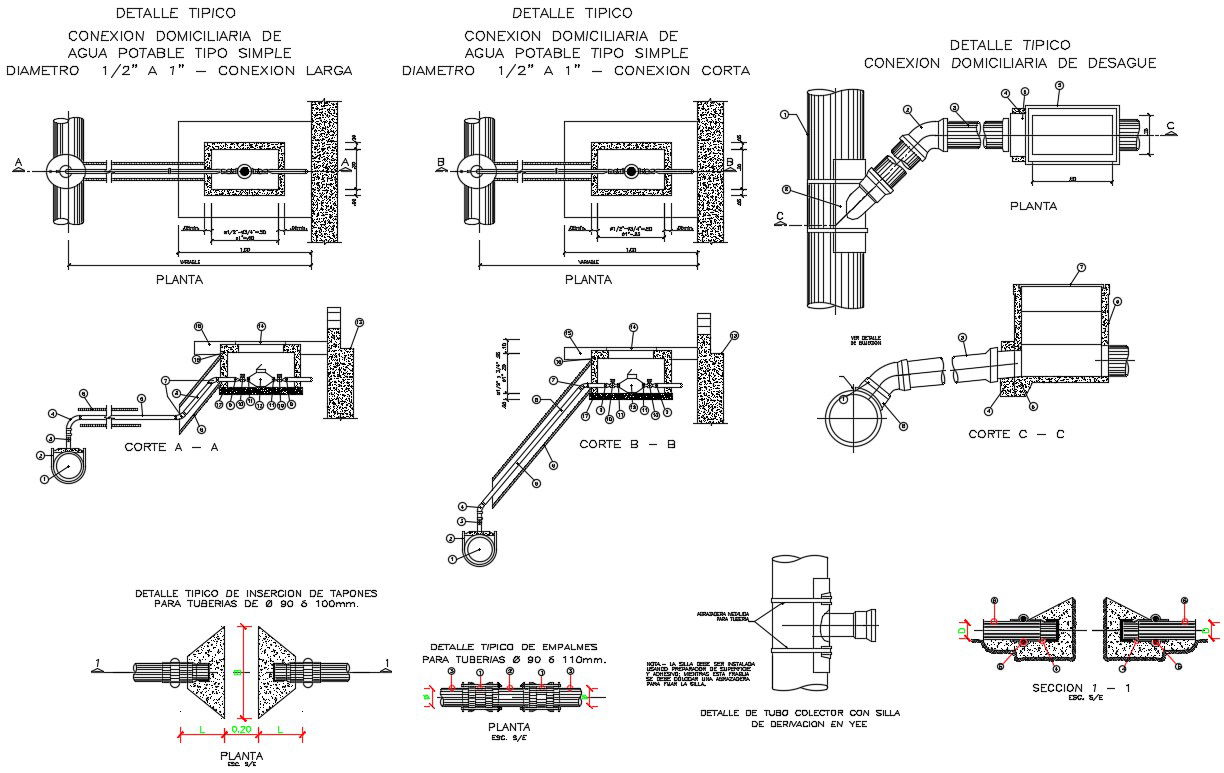

This residential plumbing layout AutoCAD drawing provides detailed construction-level information for potable water supply and drainage connections. The drawing includes typical domestic water connection layouts with pipe diameters ranging from 1 by 2 inches to 1 inch for simple long and short connections. Plan and sectional views clearly illustrate pipe routing, wall penetration details, valve positioning, tap connection points, and meter or chamber placement. Dimension lines and reference notes help define pipe lengths, offsets, and alignment with walls and floor levels. These details support the accurate installation of household plumbing systems.
