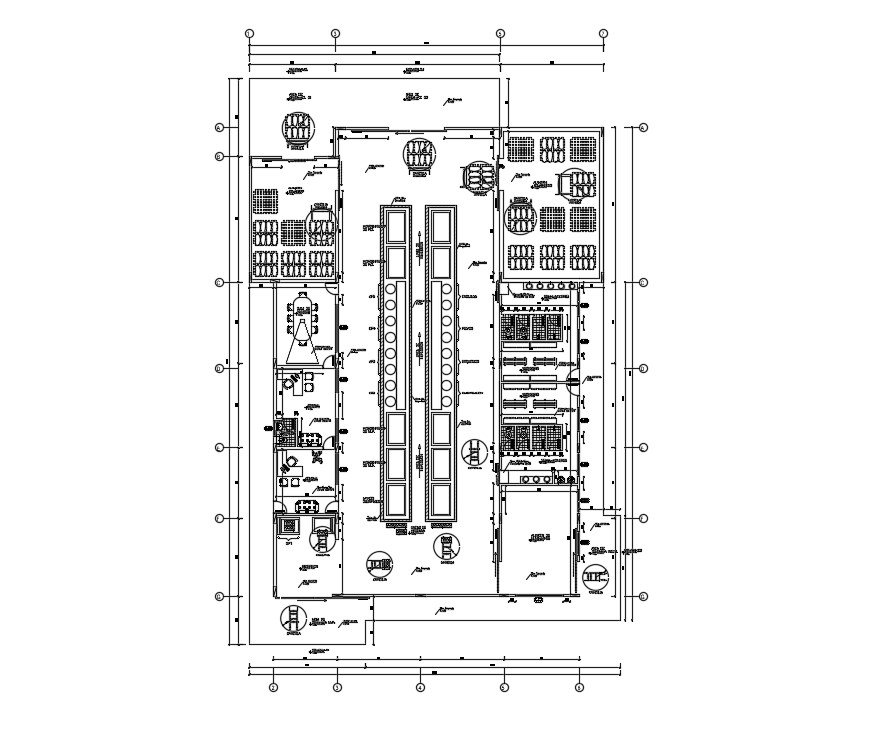

Detailed Factory Layout CAD DWG With Machinery Zones And Pathways

This Detailed Factory Layout CAD DWG file provides a comprehensive industrial plan suitable for modern manufacturing and production facilities. The drawing includes machine placement, production lines, storage areas, loading zones, administrative offices, and circulation pathways. Standard measurements are shown for accurate planning, including machine spacing of 1500 mm, storage racks 2000 x 800 mm, corridor width 1800 mm, and office spaces around 4000 x 3500 mm. The layout also details entry and exit points, workflow paths, and safety clearances, ensuring functional and efficient factory operations. The CAD file is fully scaled, layered, and professionally annotated for practical use in industrial design and construction.
