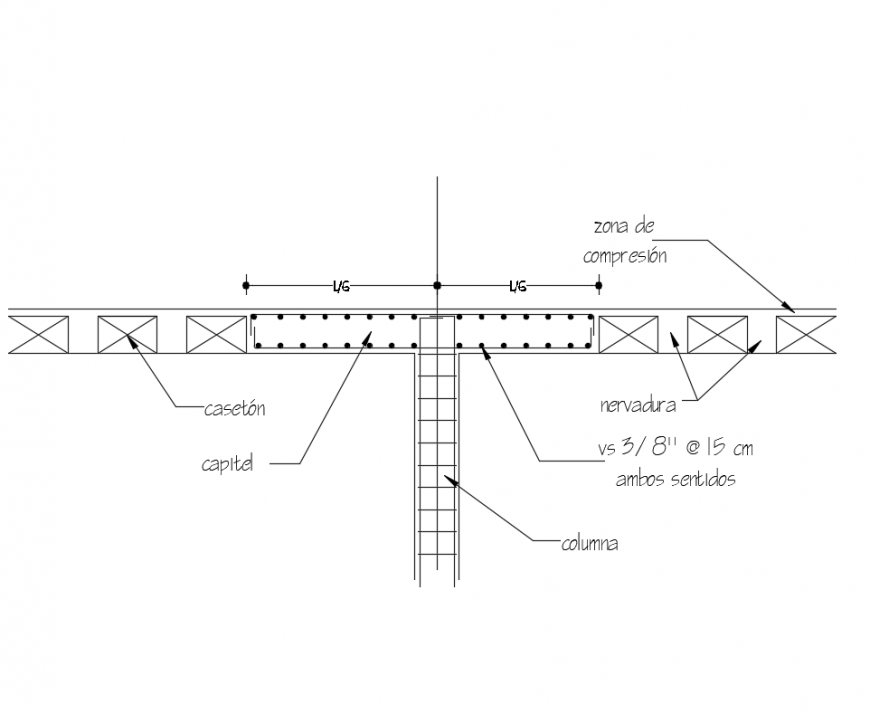

Capitel details constructive of column that includes a detailed view of compression zone, rib, both senses, column, casket, capital and much more of column details.
