Water Pumping Structure Plan with Tank and Piping Layout Detail

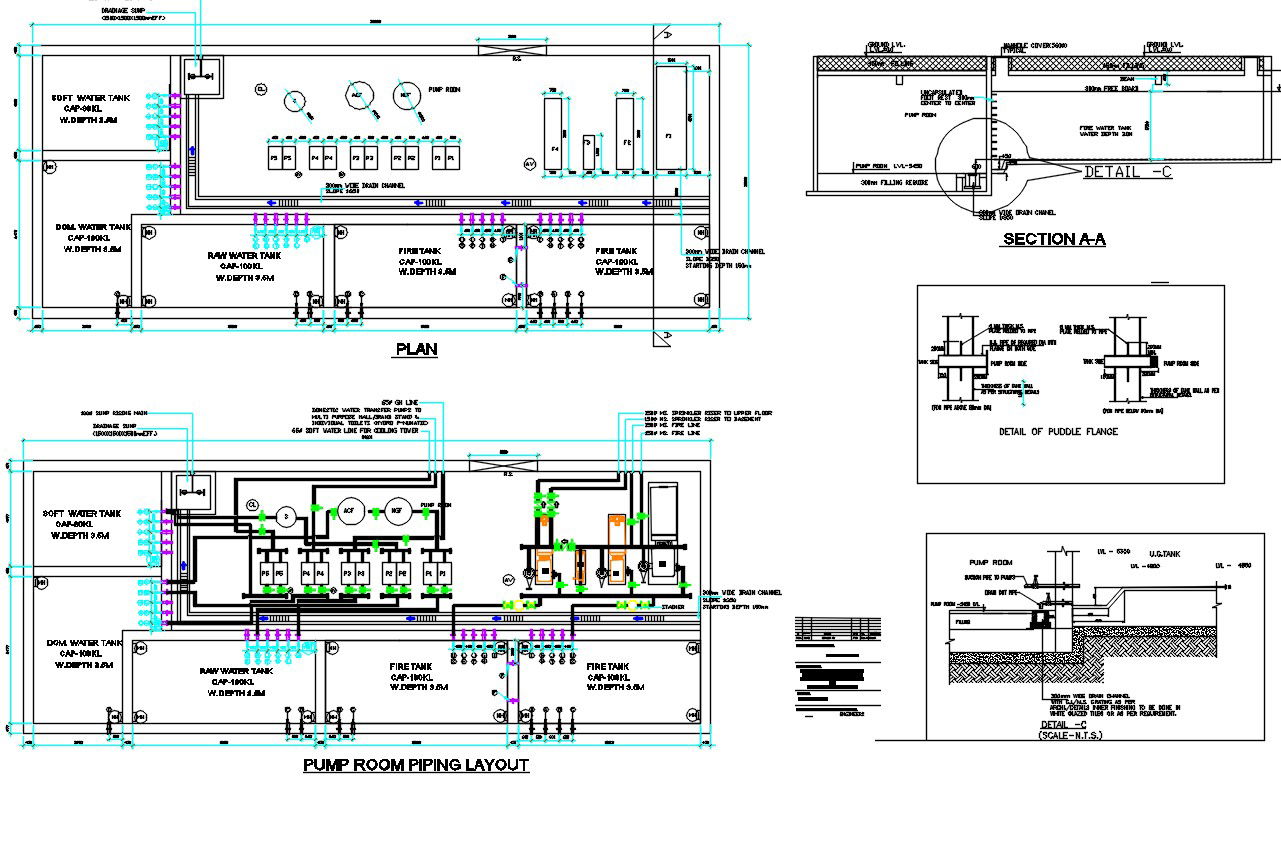

This water pumping structure plan drawing presents a comprehensive AutoCAD layout, including pump room piping layout, underground water tank arrangement, and structural foundation details. The plan clearly illustrates soft water tank, domestic water tank, fire water tank, and rainwater tank with capacity markings such as CAP 100KL and CAP 40K, L, along with width and depth dimensions. The piping network shows suction and delivery lines, pump alignment, valve placement, drain channel, and connection routing across the pump room. The thickness of tank walls is defined as per structural details to ensure safe water containment and durability.
