Detailed P.V.C Pipe Plan Section Design for Various Diameters

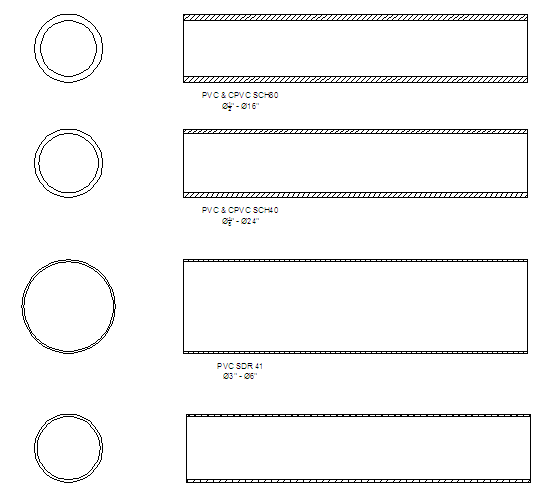

This AutoCAD file presents detailed P.V.C pipe designs in plan and section views, covering various pipe diameters and materials. The file includes specifications for PVC and CPVC SCH40 pipes, ranging from 6" to 24", as well as SDR41 pipes, ranging from 3" to 6". The illustrations show both the pipe sections and their detailed features, essential for piping systems in construction and engineering projects. This file provides clear and precise representations of different P.V.C pipes for professionals working in architecture, civil engineering, interior design, and more. Ideal for use with AutoCAD, Revit, 3D Max, and Google SketchUp, the file is available for purchase via Cadbull subscriptions. It offers a crucial resource for pipe layout and system planning.
