RCC Beam 23cm Brick Wall Structure Detail with Waterproofing Plaster

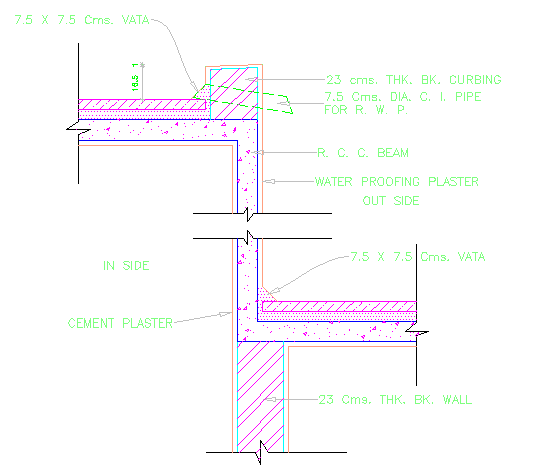

Download this detailed RCC beam and 23cm brick wall structure detail drawing designed for accurate construction documentation. The drawing clearly shows the reinforced concrete beam connection with a 23cm thick brick wall, 23cm thick brick curbing, 7.5 x 7.5 cm vata detail, and a 75mm diameter C.I. pipe for rainwater pipe provision. It also includes an inside cement plaster finish and exterior waterproofing plaster outside layer for enhanced durability and moisture protection. All elements are properly labeled to ensure practical understanding for site execution.

This AutoCAD DWG file provides a precise sectional concrete detail suitable for residential and commercial structural projects. The structure detail highlights beam to wall junction, the waterproofing plaster application, the brick masonry thickness, and rainwater pipe integration. Ideal for architects, civil engineers, builders, and designers, this RCC beam and 23cm brick wall structure detail with waterproofing plaster ensures professional drafting standards and efficient project planning using AutoCAD and BIM software platforms.
