Precast Catch Basin Details with Grate Frame and Drain Section

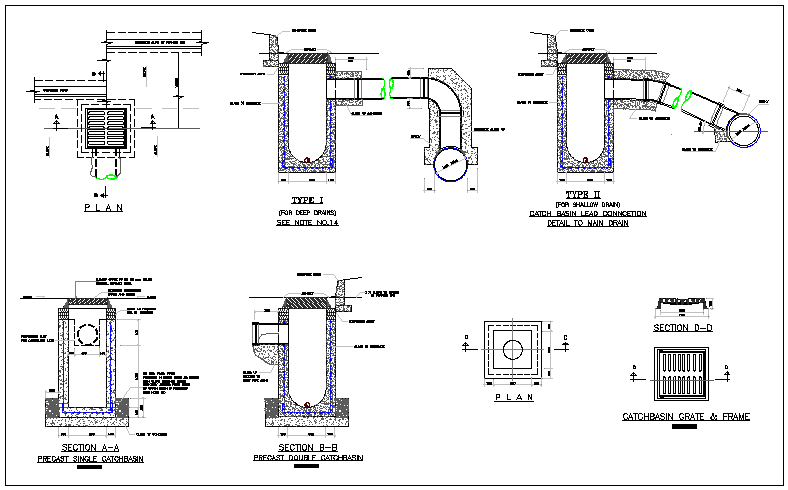

Precast catch basin details drawing presenting complete plan and section views of single and double chamber units with structural dimensions and drainage connections. The layout includes precast single catch basin section showing internal chamber depth, wall thickness, base slab, and inlet outlet pipe openings. Grate and frame plan with sectional detail illustrates frame seating level, grate bar spacing, and load bearing arrangement. Deep drain type detail is drafted with vertical chamber configuration, pipe diameter reference, and bedding layer indication for effective stormwater collection.
