Typical Section Details of an Electrical Duct Bank Design. Download AutoCAD DWG file.

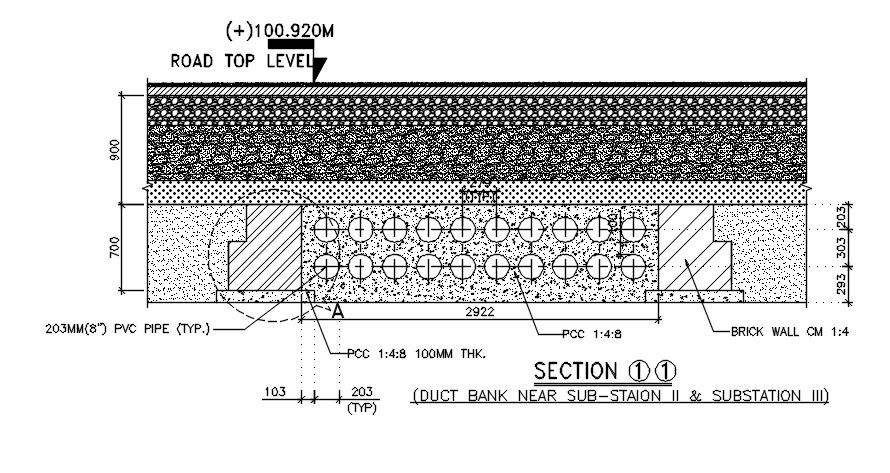

Typical sectional details of Electrical Duct bank is described. Electrical Duct bank are laid out within PVC conduits that are bundled together, these groupings of conduit are protected by concrete casings. In this section material specification, PVC pipe cross sectional dimensions and base course and sub course below road level of the duct are specified. Download the AutoCAD DWG file form our website for enhanced view.
