Roof Parapet Wall Section Detail With Concrete Stirrups At 20cm

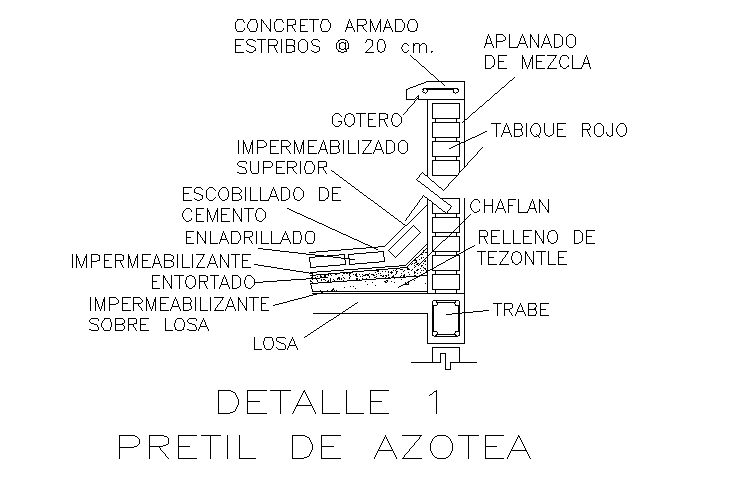

This roof parapet wall section detail drawing illustrates the construction arrangement of a masonry parapet wall connected with a reinforced concrete slab system. The section shows a reinforced concrete beam element with steel stirrups spaced at approximately 20 cm, which strengthens the structural frame at the top of the wall. The parapet wall is constructed using red brick masonry units stacked vertically and finished with a plaster leveling layer at the top. A drip edge element is incorporated at the parapet edge to guide rainwater away from the wall surface. The drawing also indicates the chamfered edge at the junction of the wall and roof slab, which prevents water accumulation and improves drainage from the roof surface. These structural elements ensure proper load distribution from the wall into the reinforced concrete slab system.
