This AutoCAD DWG file presents a detailed mechanical piping layout showing pipe diameters ranging from 2 inches to 6 inches, along with clearly marked gradients such as 1,0 per cent, 1,7 per cent, and 1,54 slope indicators for accurate hydraulic design. The drawing includes the pump section labelled as 6 bombas 5,6 kW, which helps define the required flow distribution through the piping system. Multiple PVC pipe routes are identified, including PVC 110 mm, PVC 160 mm, PVC 200 mm, and PVC 250 mm, ensuring proper selection during installation. Additional routing elements, such as canaleta 4x4 and canaleta 40x20 cm, are shown for cable or service coordination with mechanical lines.

The layout displays directional arrows, slope markings, and pipe transitions that allow engineers to understand how fluid movement is managed across the entire system. Key measurement labels such as 150, 30, and 20 assist in establishing precise alignment during site execution. The drawing also provides a clear arrangement of inlets, outlets, and connection points marked as INICIO and other labelled nodes. This piping diagram is valuable for mechanical designers, plumbers, architects, and contractors looking for a measurement-based reference that supports accurate design, coordination, and installation of hydraulic and mechanical services.

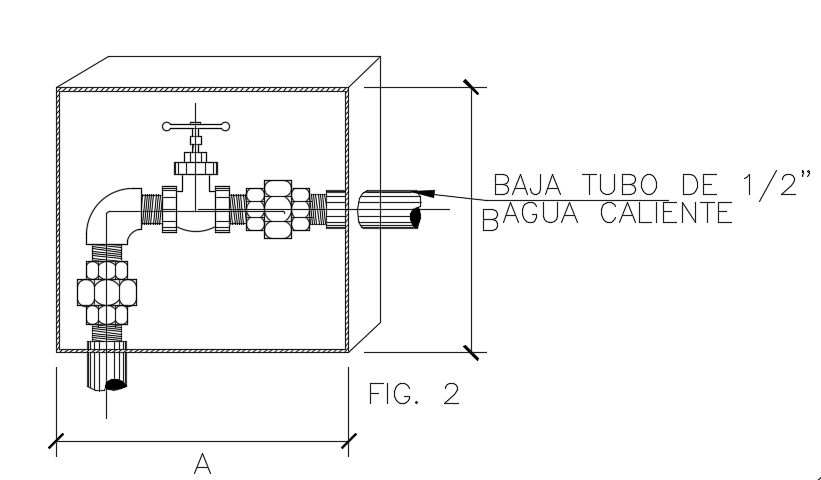

L shape pipe line connection drawing is given in this file

Meera

Description

DWG

2.5 MB

Construction

Plumbing Drawing

Gold

Meera
