Sewer Inlet Drainage CAD Detail with Plan Sections and Measurements

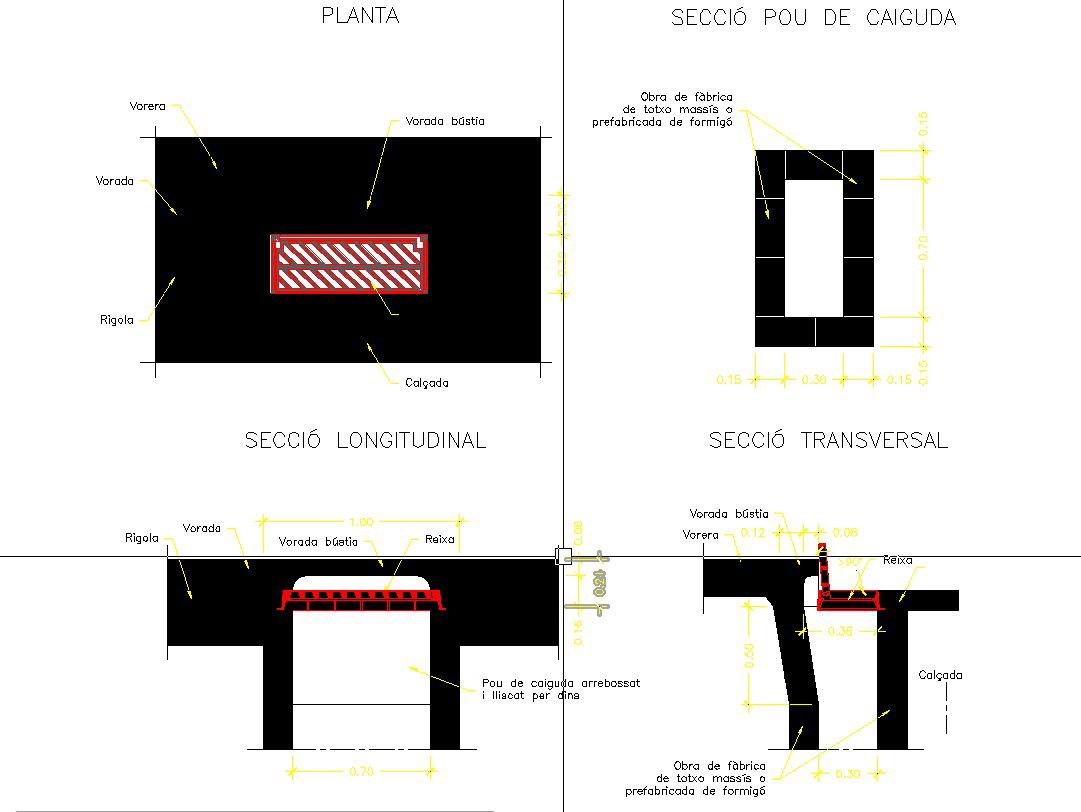

This AutoCAD drawing presents a detailed sewer inlet drainage layout showing inlet structure placement, drainage flow entry, and dimensional measurements used in underground drainage systems. The drawing includes plan view, elevation views, and both longitudinal and transversal sections that illustrate how the sewer inlet connects with drainage pipelines and surface runoff collection systems. Architects, civil engineers, and infrastructure designers can use this drawing to understand inlet positioning, water entry alignment, and structural configuration within stormwater and sewer drainage networks. Clear annotations explain inlet chamber placement, pipe connection alignment, and structural detailing required for effective water flow management.
