L Shape Structural Block Layout with Column and Beam CAD Detail

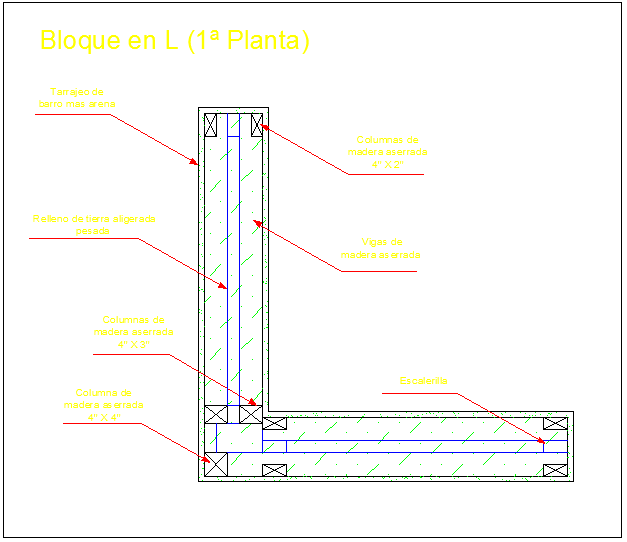

This AutoCAD drawing shows a detailed structural layout of an L-shaped block construction used in building structural planning. The drawing illustrates the arrangement of wooden columns, structural beams, and wall construction forming an L-shaped layout. The plan includes clear structural annotations indicating column sizes such as 4 by 2 inch, 4 by 3 inch, and 4 by 4 inch wooden columns, along with wooden beams supporting the structure. The wall section also shows layered construction, including soil fill and a clay and sand mixture used for wall strengthening and stability.
