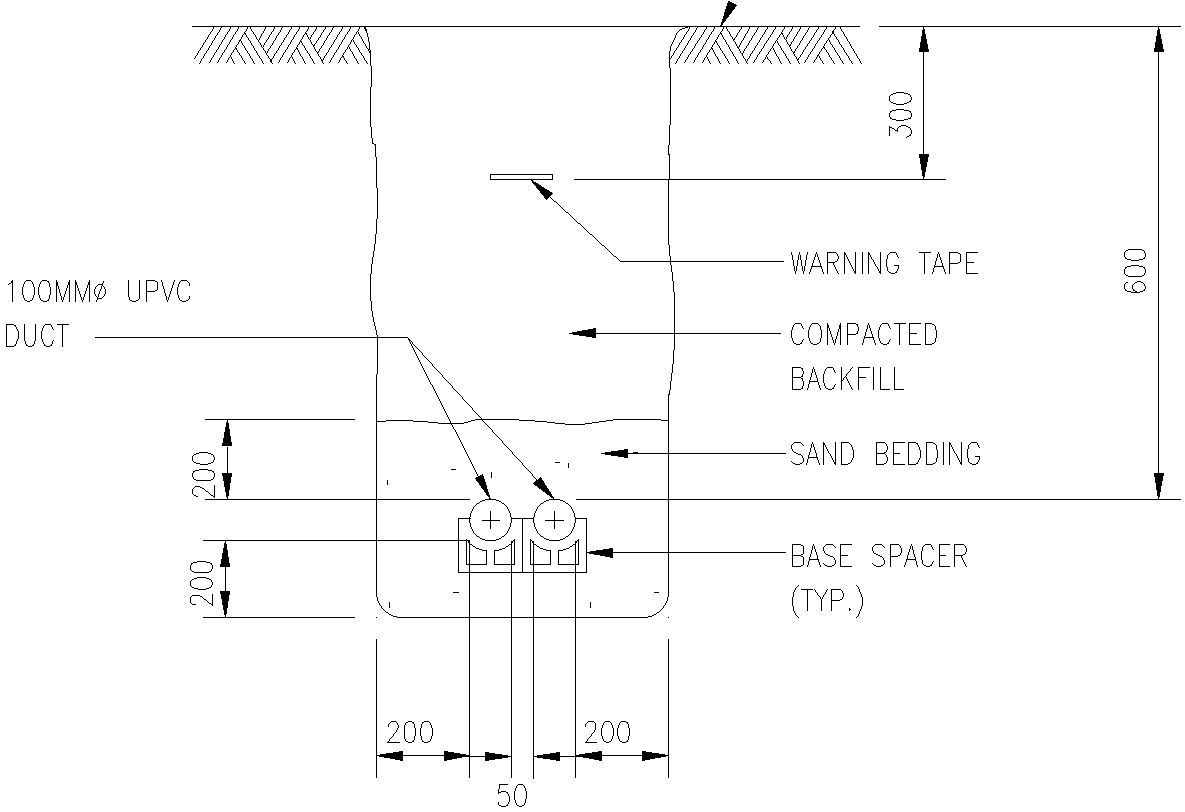

This Architectural Drawing is AutoCAD 2d drawing of Base space in sand bedding details in AutoCAD, dwg file. The bedding is the material placed in the bottom of the trench on which the pipe is laid. The embedment is the soil placed to support the load on the pipe. For rigid pipe, embedment helps distribute the load over the foundation. For flexible pipe, embedment resists the deflection of the pipe due to load.
