600x800 Beam Opening Drawing with 200x200 Sleeve Reinforcement

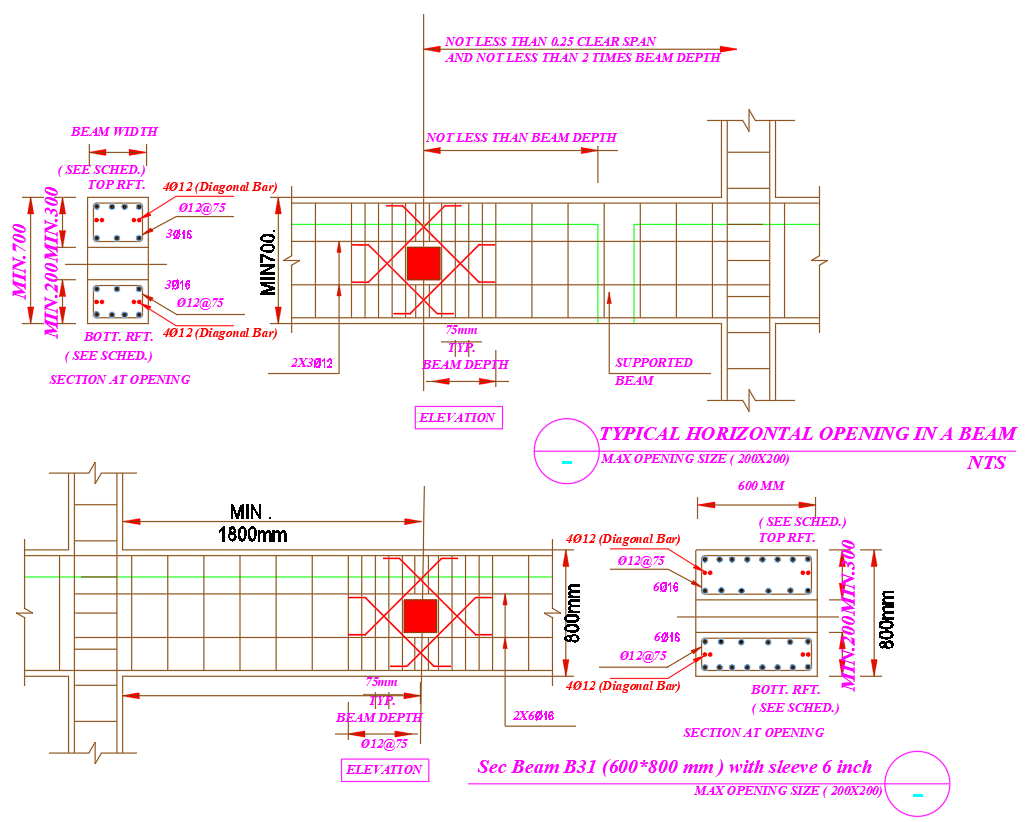

This AutoCAD DWG file presents a detailed beam opening drawing designed for structural and construction professionals. The drawing illustrates a 600x800 RC beam with a 200x200 sleeve opening, including clear reinforcement layouts, diagonal bars, spacing, and sectional views. It provides precise information on beam depth, span limits, bar arrangements, and opening positioning for safe structural performance. The file is ideal for architects, civil engineers, and designers who require accurate structural beam details for residential and commercial projects. With clear annotations and standardized dimensions, this drawing supports effective planning, coordination, and execution in reinforced concrete design.

The file includes elevation and section views showing beam opening reinforcement, top and bottom bars, stirrup spacing, and sleeve placement. It helps users understand load transfer and structural safety around openings. This drawing improves productivity and ensures compliance with modern construction standards.
