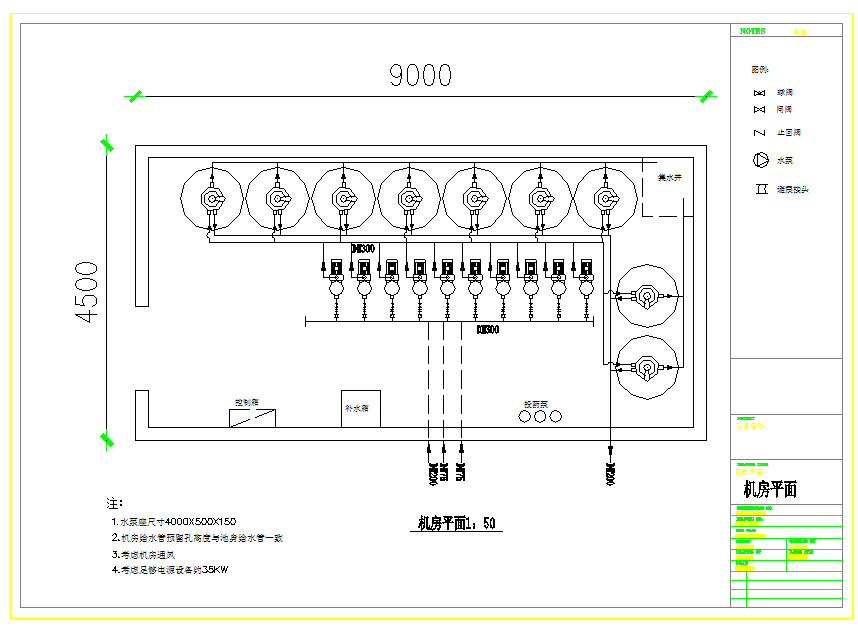

Electric Room Plan lay-out

Description:

Ball valve , gate, Check valve, Pump, Shock absorber connector, Water collection wells, The height of the reserved hole in the room water supply pipe is the same as that of the water pipe in the tank body, Consider room ventilation,

Category : Electrical Cad
Sub category : Architecture
File Type : Autocad
File ID : 52174
Type : Gold
Size : 42.77 KB
Publisher
Zalak Prajapati
India

Download Add to Library
