Fiber-forte installation and overlap structure details dwg file


Description

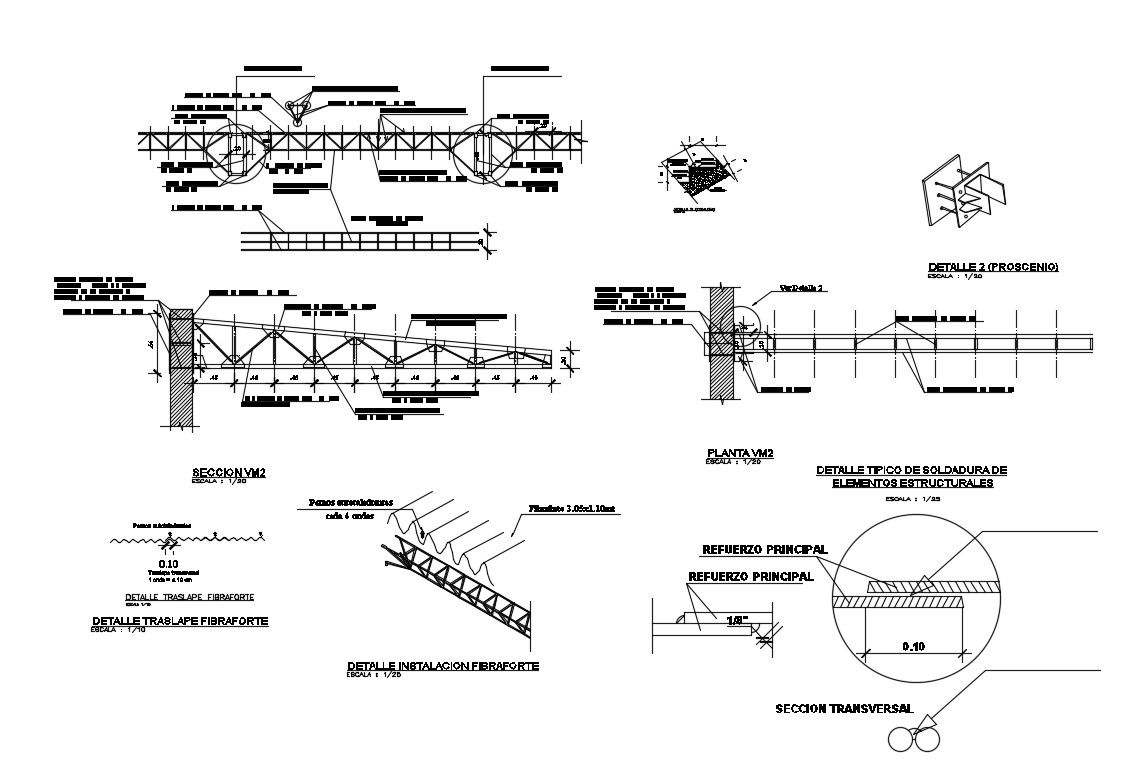

Fiber-forte installation and overlap structure details that includes a detailed view of Fiberforte overlap detail, Fiberforte installation detail, Self-drilling bolts, Fiberforte overlap detail, welded rod of corrugated iron e = 5/8 "(6 units), embedded in the concrete and welded to anchor plates, connecting boat) connecting boat and much more of structure details.



Vaishali
India
File Type: DWG ID: 62707
