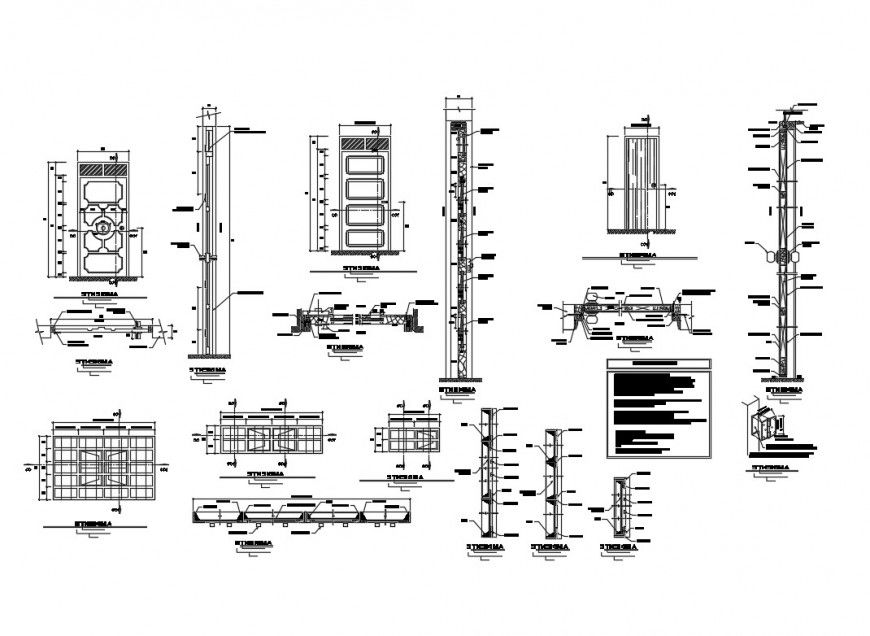

Health post doors and windows elevation and installation details dwg file

Health post doors and windows elevation and installation details that includes a detailed view of picaporte to the floor, detail of hinge fixing, detail of picaporte cerrojo, horn, picaporte, anchored horn with wires and fences, galvanized mesh, clamps galv, aluminum couplings, amarres galv, rh place 1 into the spot and 2 in the corners, pe as reinforcement in straight sections, technical specifications, model selection, symbology details, dimensions details, joints details and much more of door installation details.
