CET Block Wall Axonometric Detail Lower Floor 2.40m Height System

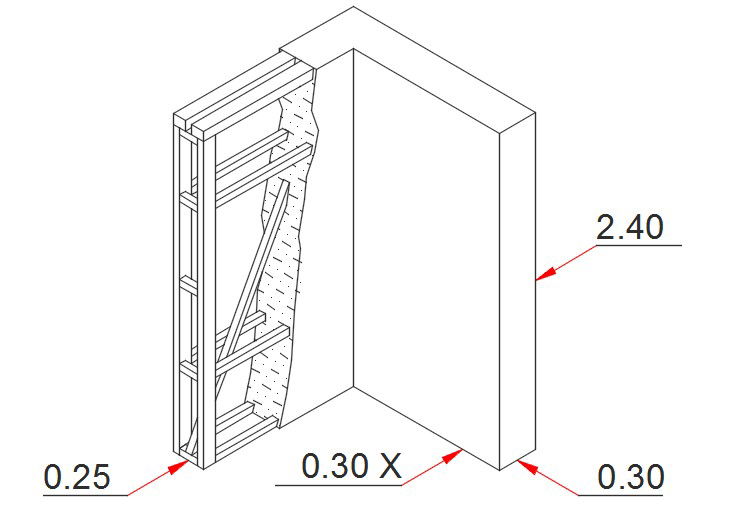

This AutoCAD DWG drawing presents an axonometric detail of a CET block wall system used for lower-floor construction. The drawing illustrates a square corner wall configuration with a structural wooden frame combined with earth infill materials. The wall height is approximately 2.40 meters, with a structural wall thickness of about 0.30 meters, as shown in the drawing. The internal structural framework consists of wooden studs and diagonal bracing elements that provide strength and stability to the wall assembly. The cavity between the wooden frame members is filled with compacted earth material,l which improves insulation and structural performance. The base of the wall shows a structural support thickness of approximately 0.25 meters used for foundation or base support connection.
