Water Reservoir Tank Plan Layout Section and Structural Details

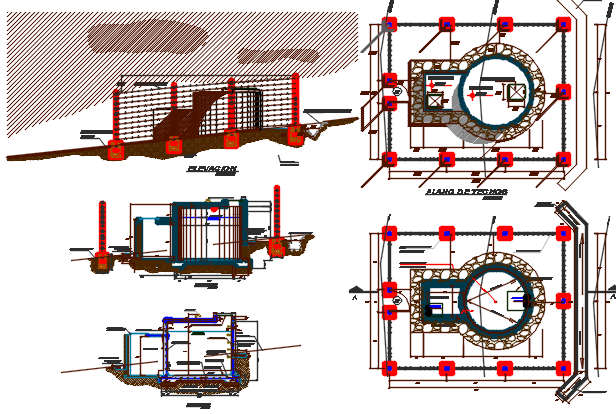

This water reservoir tank plan AutoCAD drawing presents a detailed structural layout, including reservoir tank plan, sectional views, and construction details used for water storage infrastructure planning. The drawing clearly illustrates the reservoir tank layout with circular tank structure, surrounding retaining walls, foundation supports, and inlet and outlet pipe connections. The plan also highlights structural components such as support columns, tank boundary walls, and reinforcement zones designed to ensure safe water storage and structural stability within the reservoir system.
