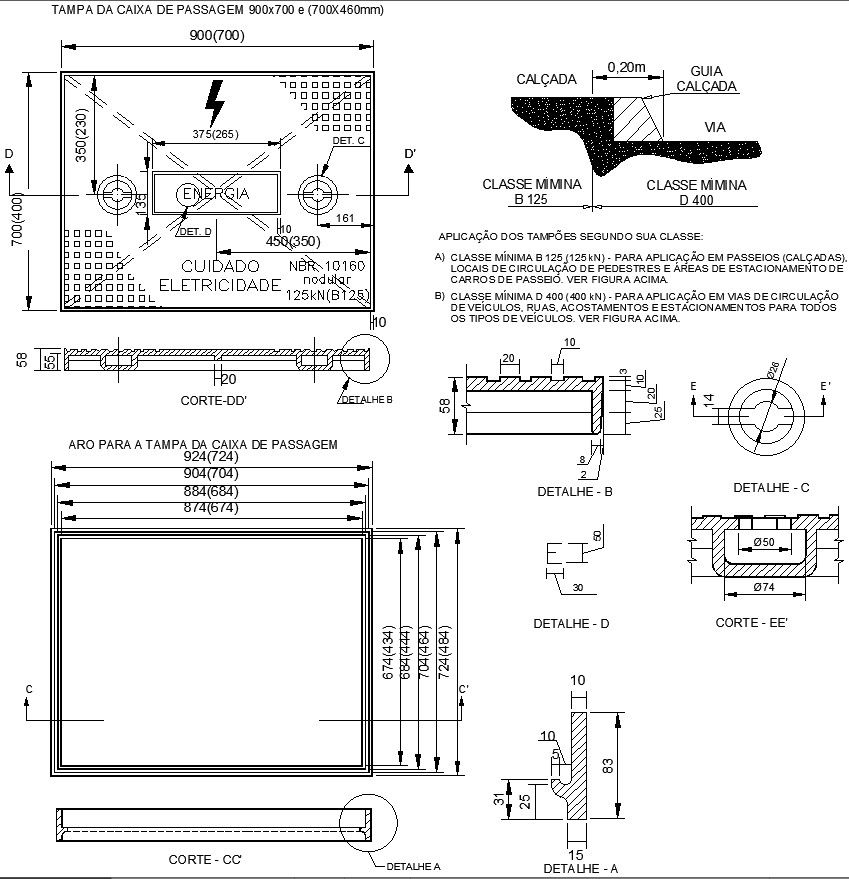

This Architectural drawing is Plan of junction box in detailing in AutoCAD 2D. Total size of the box is 900x700. In this drawing there were section DD' and CC' are given with their detail dimension. There were also given rim for the timing of the junction box. For more details and information download the DWG file.&nbsp;
<pre id="tw-target-text" class="tw-data-text tw-text-large tw-ta" dir="ltr" data-placeholder="Translation"></pre>

This Architectural drawing is Plan of junction box in detailing in AutoCAD 2D. Total size of the box is 900x700. In this drawing there were section DD' and CC' are given with their detail dimension. There were also given rim for the timing of the junction

Plan of junction box cover in detailing in AutoCAD 2D
