Box Collector Construction Plan with Valve and Tube Section View

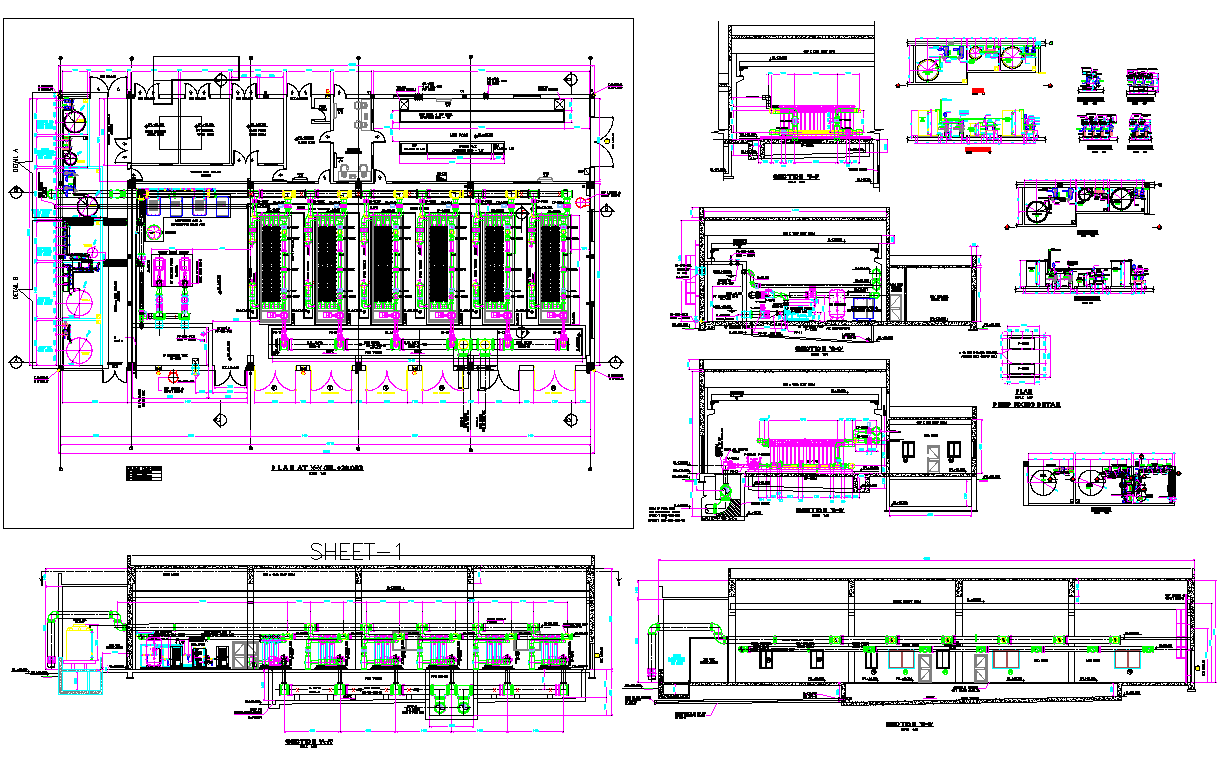

This AutoCAD DWG file provides a comprehensive construction view of a box collector system, including detailed plan and sectional views. The design highlights the box collector structure, wall placement, valves, and tubes, providing accurate dimensions for each component. The drawing includes detailed views of the box collector's alignment, integration with valves, and tube connections, ensuring clarity for construction and installation. Sectional views provide an in-depth look at the internal structure and materials used in the box collector, while the plan view offers an overview of the layout and positioning.
