Building Construction Detail Plans And Sections With Dimensions

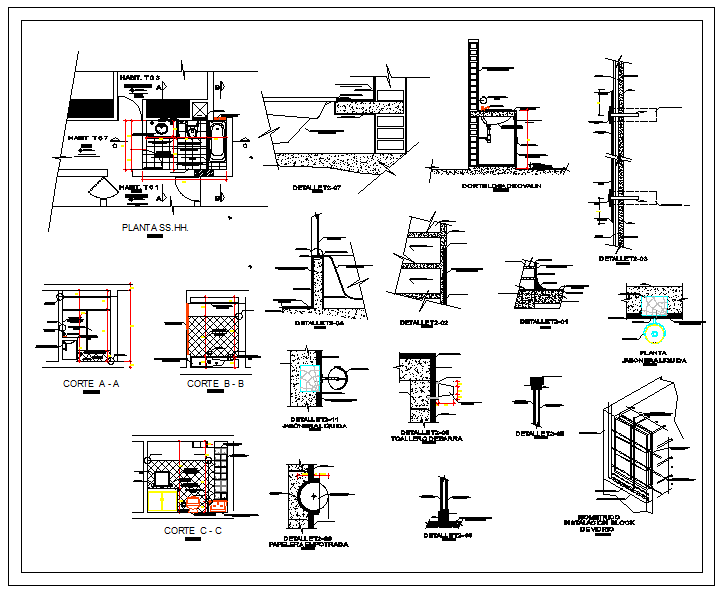

This AutoCAD DWG file contains a comprehensive set of architectural detail drawings, including plan views, sectional cuts, and construction details prepared at standard working scales such as 1:25 and 1:50. The drawing sheet covers basement or service-level layout planning, internal sections labeled A A, B B, and C C, and multiple enlarged construction details. Illustrated elements include foundation footing buildup, wall junctions, floor slab connections, door and window fixing details, threshold construction, and waterproofing layers. Dimensions are clearly marked in metric units, showing wall thicknesses around 150 to 230 mm, foundation depths, floor finish layers, and opening offsets required for accurate execution.

The sectional details explain vertical construction relationships between floor slabs, walls, and foundations, including reinforcement zones, damp-proof layers, and material transitions. Additional enlarged details highlight door frame installation, window jamb sections, and service penetration treatments with precise fixing clearances. All drawings follow professional CAD drafting standards with organized layers, readable annotations, and scaled geometry for easy editing.
