Roof Slop With Wall Joint Section CAD Drawing Drawing DWG File


Description

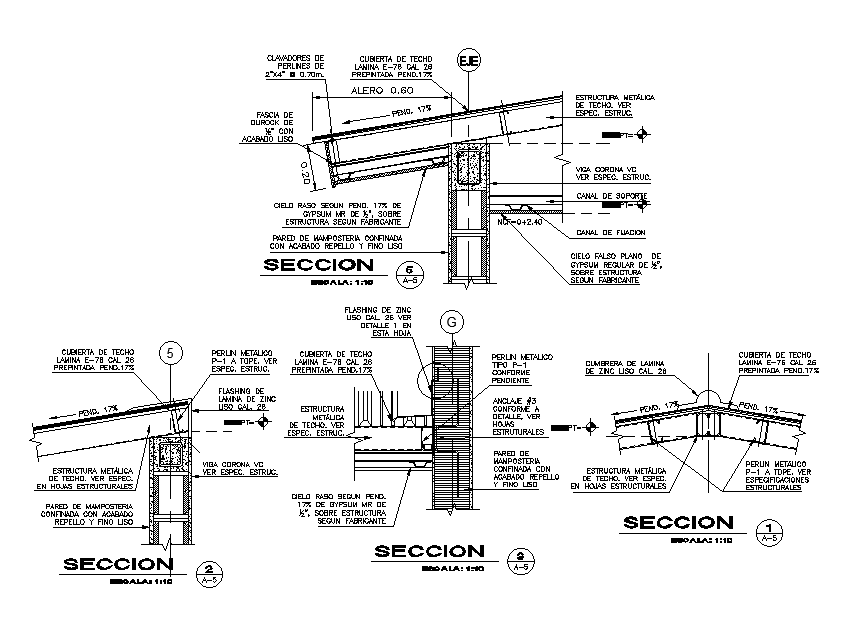

the house truss span roof slop with wall column section CAD drawing which includes roof covering lamina pre-painted pend 17%, 1/2 "regular gypsum false flat sky, on structure according to manufacturer, metallic structure roof. see structure specific, masonry wall confined with flat finish and smooth fine and metallic ceiling structure. see spec in structural sheets. Thank you for downloading the AutoCAD file and other CAD program from our website.




File Type: DWG File ID: 173369

Uploaded by:


Komal
India
