Window Detail AutoCAD Drawing with Frame Section and Glass Layout

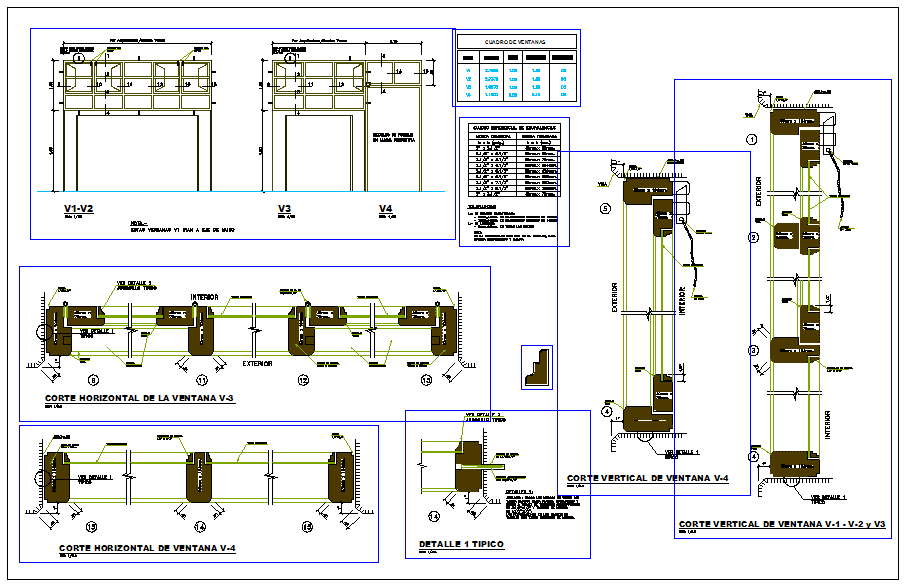

This Window Detail AutoCAD drawing provides complete technical information for window frame construction, glass installation, and wall connection systems. The drawing includes accurate dimensions for window width and height, frame thickness, mullion spacing, sill depth, and glazing positioning. It illustrates horizontal and vertical sectional views for window types V1, V2, V3, and V4, showing aluminum profiles, sealing joints, waterproof layers, and fixing brackets. These detailed specifications ensure proper ventilation, thermal insulation, weather resistance, and structural stability in residential and commercial buildings. This professional AutoCAD DWG file is ideal for architects, civil engineers, interior designers, and builders working on modern construction projects. The drawing supports fabrication planning, installation coordination, and material estimation.
