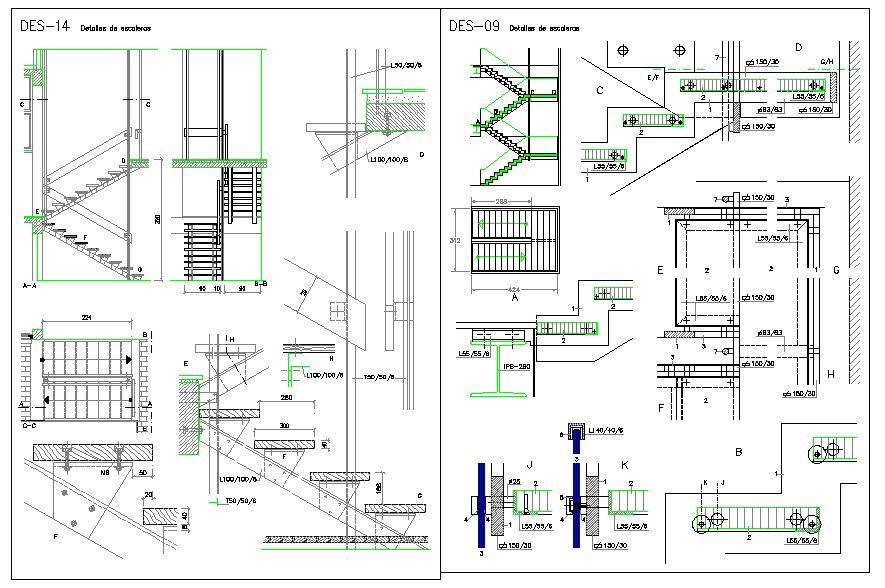

Stair Structure Detail with Plan layout Section and Elevation

Stair structure detail with plan section and elevation presents comprehensive structural drawings including stair plan layout, sectional views, and elevation detailing. The drawing illustrates reinforced concrete stair flights, landing beams, support connections, and steel member references such as IPE 280 sections. Dimensional annotations define tread depth, riser height, landing width, and structural spacing. Plan view highlights stair alignment within grid references, while sectional details show beam support, slab connection, and anchorage positioning for load transfer continuity.
