Modern Stair Detail Drawing with Section Elevation and Layout

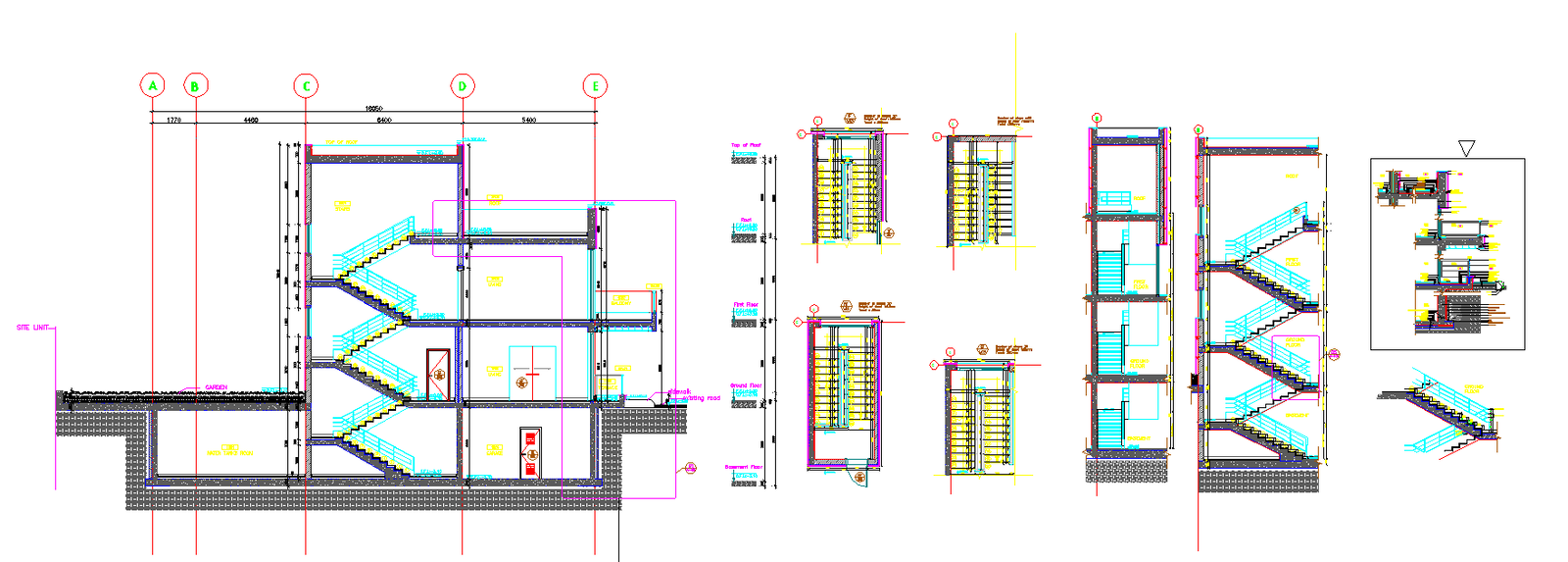

This Modern Stair Detail drawing is prepared in AutoCAD format and presents detailed stair construction for contemporary buildings. The drawing includes clear stair layout plans with tread and riser configuration for safe movement. Section and elevation views explain vertical circulation and floor to floor connection. Structural details show stair support members and load transfer arrangement. Handrail and balustrade fixing positions are clearly indicated for installation accuracy. Dimensions are provided for stair width riser height and tread depth to support precise construction execution.
